Description:

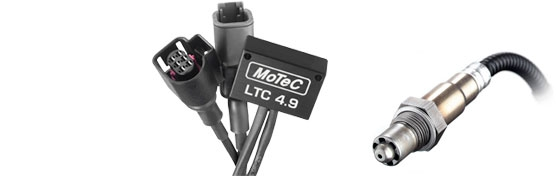

MoTeC’s LTC (Lambda to CAN) modules monitor, control, and diagnose Bosch LSU 4.9 Lambda sensors while transmitting readings on a CAN bus. When multiple LTCs are used, up to 32 Lambda sensors can be configured on a single CAN bus allowing an ECU or logging device to simultaneously monitor numerous Lambda sensors.

NOTE: DOES NOT INCLUDE SENSOR

General

• Provides accurate Lambda measurement even when exhaust gas temperature is changing rapidly (heating or cooling)
• Calibrated by the user for a particular sensor using either the initial sensor factory calibration or a free air calibration
• Install as a single unit or in multiples
• Pre-configured to suit a single LTC unit installation
• Cost effective

Measurement/Configuration

• Compatible fuel:

               -gasoline/petrol

               -alcohol

               -LPG

               -diesel

               -user defined 'blend' fuel

• Comprehensive diagnostic and status channels

• Calibration methods:

               -automatic, using the sensor's built-in calibration resistor

               -known oxygen environment

• Standard configuration tables

• Configurable to compensate for sensor aging and contamination

• Accuracy +/– 1.5%

• Operating range:

               -Lambda 0.65 to 10

               -AFR 9.5 to 147 for gasoline/petrol

NOTE: MoTeC’s LTC is also available in a dual version, LTCD
