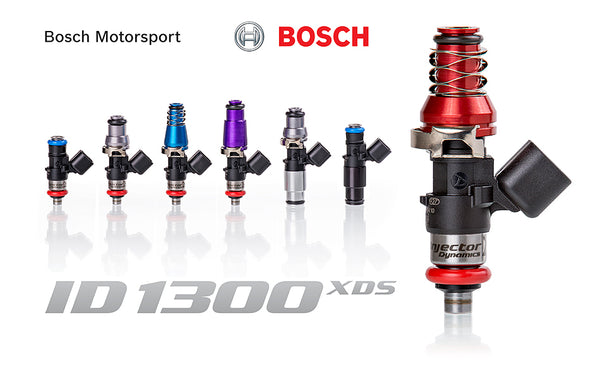

Injector Dynamics ID1300-XDS Fuel Injector
Injector Dynamics ID1300-XDS Fuel Injector

Description:

The ID1300x² is an all new injector, designed in partnership with Bosch Motorsport. This collaboration has given us the ability to design a high flow injector with characteristics specific to the needs of the motorsport tuner. The ID1300x² was designed with alternative fuels in mind, and was originally the only performance injector available with all stainless internals. It is compatible with all known fuels, and will stand up to the corrosive nature of alcohol better than any injector on the market.
While the ID1300x² was designed with an eye towards ethanol fueled engines, we have accounted for the occasional need to convert back to gasoline. The ID1300x² has a minimum fuel mass compatible with gasoline use, and will provide exceptional idle and cruise behavior under these conditions. In addition to its multi-fuel capabilities, the compact body of the ID1300x² allows fitment in 200+ applications, making it the most versatile injector in our lineup.


To learn more about the nature and development of this true motorsport injector and its siblings the ID1050x and ID1700x, follow this link.


Basic Specifications

Nominal Flow Rate – 1335cc/min @ 3.0 Bar (43.5 psi) Using Iso Octane at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
Fuel Compatibility – Compatible With All Known Fuels – (Designed Specifically for Alternative Fuels)
Electrical Connector – USCAR

Basic Specifications

Nominal Flow Rate – 1335cc/min @ 3.0 Bar (43.5 psi) Using Iso Octane at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
Fuel Compatibility – Compatible With All Known Fuels – (Designed Specifically for Alternative Fuels)
Electrical Connector – USCAR



ID1300x² Dynamic Flow Data

Fuel Pressure Offset Slope
(psid) (µsec) (cc/min)
8 Volts 10 Volts 12 Volts 14 Volts 16 Volts
40.0 2175 1575 1235 1020 855 1275
43.5 2230 1610 1255 1035 865 1335
45 2255 1620 1265 1040 870 1360
50 2350 1665 1290 1055 880 1440
55 2445 1715 1320 1070 895 1520
60 2535 1765 1355 1095 915 1590
65 2620 1830 1395 1125 935 1655
70 2705 1895 1445 1160 960 1715
75 2790 1955 1480 1185 975 1770
80 2875 2015 1510 1205 990 1820
85 N/A 2075 1540 1220 1005 1860
90 N/A 2135 1580 1250 1025 1895
95 N/A 2195 1625 1280 1050 1925
100 N/A 2250 1675 1320 1080 1950


ID1300x Dynamic Flow Data

Fuel Pressure Offset Slope
(psid) (µsec) (cc/min)
8 Volts 10 Volts 12 Volts 14 Volts 16 Volts
43.5 2340 1585 1180 940 750 1345
45 2385 1605 1195 950 760 1365
50 2540 1665 1250 985 790 1445
55 2695 1730 1300 1020 820 1520
60 2850 1810 1350 1055 845 1590
65 3010 1890 1395 1095 875 1655
70 N/A 1980 1445 1135 900 1715
75 N/A 2080 1500 1175 930 1775
80 N/A N/A 1560 1220 960 1830
85 N/A N/A 1620 1260 995 1885
90 N/A N/A 1685 1300 1025 1935




Plug and Play Data:

Copy calibration files directly to your ECU straight from the manufacturer!

Fitment by Make & Model

All applications with an asterisk after the part number are incompatible with the stock ECU due to scaling limits.

Universal 1300.34.14.14 $234.15
1300.34.14.15 $234.15
1300.48.11.14 $236.25
1300.48.11.WRX $236.25
1300.48.11.F20 $236.25
1300.48.14.14 $236.25
1300.48.14.15 $236.25
1300.48.14.R35 $236.25
1300.48.14.14B $236.25
1300.60.14.14 $236.25
1300.60.14.14-O $236.25
1300.60.14.D $236.25
1300.60.14.14B $241.50
1300.60.11.14 $236.25
1300.60.11.14-O $236.25
1300.60.11.D $236.25
Arctic Cat 1100 Turbo 09-16 1300.28.01.36.11.4 $945.00
Audi Audi EA888 Gen 3 1300.60.14.14B.4 $936.60
R8 2015+ 1300.34.14.14.10 $2,341.50
Audi RS3/TTRS 1300.34.14.14.5 $1,170.75
Audi VR6 (12 valve) 1300.60.14.14B.6 $1,449.00
Audi VR6 (24 valve) N/A
BMW E30 M3 88-91 1300.60.14.14.4 $945.00
E36 M3 96-99 1300.60.14.14.6 $1,417.50
E46 M3 01-06 1300.48.14.14.6 $1,417.50
E90 / E92 / E93 M3 07+ 1300.48.14.14.8 $1,890.00
M54 1300.02.01.60.14.6 $1,449.00
M Coupe / M Roadster 98-00 1300.60.14.14.6 $1,417.50
920i / 740i 1300.60.14.14.8 $1,890.00
328 96-98 1300.60.14.14.6 $1,417.50
Buick Turbo Regal 1300.60.14.14.6 $1,417.50
Grand National 1300.60.14.14.6 $1,417.50
Cadillac CTS-V 09-14 (LSA) 1300.34.14.15.8 $1,873.20
Can Am Maverick Turbo 15-17 1300.34.14.14.2 $468.30
Maverick X3 2017 1300.34.14.14.3 $702.45
Maverick X3 Max 2017 1300.34.14.14.3 $702.45
Maverick X3 Turbo 2018+ 1300.34.14.14.3 $702.45
Maverick X3 Turbo R 2018+ 1300.34.14.14.3 $702.45
Maverick X3 Turbo RR 2020+ 1300.34.14.14.3 $702.45
Outlander ATV 08 1300.48.14.14.2 $472.50
Chevrolet LS3/LS7/L76/L92/L99 1300.34.14.15.8 $1,873.20
LS2 1300.48.14.15.8 $1,890.00
LS1/LS6 1300.60.14.14.8 $1,890.00
Camaro 93-96 (LT1) 1300.60.14.14.8 $1,890.00
Camaro 98-01 (LS1) 1300.60.14.14.8 $1,890.00
Camaro 10-15 (LS3) 1300.34.14.15.8 $1,873.20
Camaro ZL1 (LSA) 1300.34.14.15.8 $1,873.20
C5 Corvette (incl Z06) 1300.60.14.14.8 $1,890.00
C6 Corvette 1300.34.14.15.8 $1,873.20
C6 Z06 (LS7) 1300.34.14.15.8 $1,873.20
C6 ZR1 (LS9) 1300.34.14.15.8 $1,873.20
Cobalt SS (super) 1300.60.14.14B.4 $966.00
Dodge / Chrysler Neon SRT-4 1300.48.14.14.4 $945.00
Caliber SRT-4 1300.48.14.14.4 $945.00
300C SRT-8 1300.48.14.14B.8 $1,890.00
Challenger SRT-8 1300.48.14.14B.8 $1,890.00
Magnum SRT-8 1300.48.14.14B.8 $1,890.00
Hellcat/Trackhawk/Demon 1300.48.14.14.8 $1,890.00
Viper 03-07 1300.60.14.14.10 $2,362.50
Ram SRT-10 04-06 1300.60.14.14.10 $2,362.50
Viper 08+ 1300.48.14.14B.10 $2,362.50
Ford Focus ZX3 1300.60.14.14.4 $945.00
Focus SVT 1300.60.14.14.4 $945.00
Focus RS 1300.60.14.14.4 $945.00
Focus RS MK II-IV 1300.48.14.14.5 $1,181.25
SVT Lightning 1300.60.14.14.8 $1,890.00
F150 5.0 2011+ 1300.60.14.14B.8 $1,932.00
F150 Harley Davidson 1300.60.14.14.8 $1,890.00
Mustang SVO 1300.60.14.14.4 $945.00
Mustang GT 88-96 1300.60.14.14.8 $1,890.00
Mustang GT 97-04 1300.60.14.14.8 $1,890.00
Mustang GT 05-10 1300.60.14.14.8 $1,890.00
Mustang GT 2011+ (includes GT350) 1300.60.14.14B.8 $1,932.00
Mustang Cobra 99-04 1300.60.14.14.8 $1,890.00
Mustang GT500 07-14 1300.48.14.14.8 $1,890.00
Mustang GT500 2020+ 1300.60.14.14B.8 $1,932.00
Falcon GT and GS 5.0 – 2010+ 1300.60.14.14.8-PU $1,936.00
Falcon XR6T (FG) 1300.48.14.14B.6 $1,417.50
Falcon XR6T (BA and BF) 1300.60.14.14B.6 $1,521.45
SVT Raptor 2011-2014 1300.60.14.14B.8 $1,932.00
Raptor 2017+ 1300.34.14.14.6 $1,404.90
Holden Commodore VT (V6) 1300.60.14.14.6 $1,417.50
Commodore VTII (LS1) 1300.60.14.14.8 $1,890.00
Commodore VX (LS1) 1300.60.14.14.8 $1,890.00
Commodore VXII (V6) 1300.60.14.14.6 $1,417.50
Commodore VY (LS1) 1300.60.14.14.8 $1,890.00
Commodore VS/VY (SCV6) 1300.60.14.14.6 $1,417.50
Commodore VZ (LS2) 1300.48.14.15.8 $1,890.00
Commodore W427 1300.34.14.15.8 $1,873.20
Commodore E-HSV 1300.34.14.15.8 $1,873.20
Monaro (LS1) 1300.60.14.14.8 $1,890.00
Monaro (LS2) 1300.48.14.15.8 $1,890.00
Honda/Acura Accord 92-95 1300.60.11.14.4 $945.00
Accord 96-02 1300.60.11.14.4 $945.00
Accord 03-07 1300.48.11.F20.6 $1,417.50
Civic 88-95 1300.60.11.14.4 $945.00
Civic 96-00 1300.60.11.14.4 $945.00
Civic 02-05 Si 1300.48.14.14.4 $945.00
Civic 06-11 1300.48.14.14.4 $945.00
Civic Si 12-15 1300.07.21.48.14.4 $945.00
Odyssey 02-04 1300.48.11.F20.6 $1,417.50
Prelude 92-96 1300.60.11.14.4 $945.00
Prelude 97-01 1300.60.11.14.4 $945.00
S2000 00-05 1300.48.11.F20.4 $945.00
S2000 06-09 1300.48.14.14.4 $945.00
CL 01-03 1300.48.11.F20.6 $1,417.50
Integra 90-95 1300.60.11.14.4 $945.00
Integra 96-01 1300.60.11.14.4 $945.00
NSX 91-96 1300.60.11.14-O.6 $1,417.50
NSX 97-05 1300.60.11.14-O.6 $1,417.50
RSX 02-09 1300.48.14.14.4 $945.00
TL 01-03 1300.48.11.F20.6 $1,417.50
TSX 04-10 1300.48.14.14.4 $945.00
Honda Powersports CBR1000RR 2004-2007 1300.07.01.48.11.4 $945.00
CBR1000RR 2008+ 1300.07.02.34.11.4 $936.60
Pioneer 1000 2016+ 1300.07.03.34.14.2 $468.30
Talon 2019+ 1300.07.03.34.14.2 $468.30
Hyundai Genesis 2.0t 09-12 1300.48.14.R35.4 $945.00
Genesis 2.0t 13-14 1300.60.14.14.4 $945.00
Genesis V6 09-12 1300.34.14.14.6 $1,404.90
Infiniti G35 1300.48.14.14.6 $1,417.50
G37 1300.48.14.R35.6 $1,417.50
G20 91-96 (11mm) 1300.60.11.14.4 $945.00
G20 91-96 (14mm) 1300.60.14.14.4 $945.00
G20 99-02 (11mm) 1300.60.11.14.4 $945.00
G20 99-02 (14mm) 1300.60.14.14.4 $945.00
Kawasaki ZX10 1300.34.11.D.4 $936.60
ZX14 1300.34.11.D.4 $936.60
Lamborghini Gallardo 04-13 1300.48.14.14.10 $2,362.50
Huracan 1300.34.14.14.10 $2,341.50
Lexus 2JZ-GE Air-Assist 1300.30.02.60.11.6 $1,506.75
SC400 1300.60.11.D.8 $1,890.00
Lotus Exige/Elise 05+ 1300.30.01.60.11.4 $995.40
Mazda Miata 90-05 1300.11.02.60.11.4-PU $995.40
Mazdaspeed Miata 1300.11.02.60.11.4 $945.00
Miata 06-14 1300.60.14.14B.4 $966.00
RX-7 79-84 (11mm) 1300.11.03.60.11.2 $472.50
RX-7 79-84 (14mm) 1300.11.06.60.14.2 $472.50
RX-7 85-86 (11mm) 1300.11.03.60.11.2 $472.50
RX-7 85-86 (14mm) 1300.11.06.60.14.2 $472.50
RX-7 87-92 (11mm) 1300.11.03.60.11.2 $472.50
RX-7 87-92 (14mm) 1300.11.06.60.14.2 $472.50
RX-7 93-95 (11mm) 1300.11.03.60.11.2 $472.50
RX-7 93-95 (14mm) 1300.11.06.60.14.2 $472.50
RX-8 03-11 (secondaries only) 1300.60.11.D.2 $472.50
McLaren MP4-12C 1300.34.14.14.8 $1,873.20
570S 1300.34.14.14.8 $1,873.20
600LT 1300.34.14.14.8 $1,873.20
1,125S 1300.34.14.14.8 $1,873.20
675LT 1300.34.14.14.8 $1,873.20
P1 1300.34.14.14.8 $1,873.20
720S 1300.34.14.14.16 $3,746.40
Senna 1300.34.14.14.16 $3,746.40
Mitsubishi Evo III – IX 1300.60.11.D.4 $945.00
Evo X 1300.48.14.14B.4 $945.00
Eclipse GST/GSX 1300.60.11.D.4 $945.00
Galant VR4 1300.60.11.D.4 $945.00
3000GT VR4 1300.60.11.D.6 $1,417.50
Nissan 300ZX TT (90-96) 11mm 1300.60.11.14.6 $1,417.50
300ZX TT (90-96) 14mm 1300.60.14.14.6 $1,417.50
350Z 1300.48.14.14.6 $1,417.50
370Z 1300.48.14.R35.6 $1,417.50
GTR-R32, R33, R34 (11mm) 1300.60.11.D.6 $1,417.50
GTR-R32, R33, R34 (14mm) 1300.60.14.D.6 $1,417.50
GTR (R35) 1300.48.14.R35.6 $1,417.50
GTR (R35) FOR V1 T1 Rails 1300.60.14.14-O.6 $1,417.50
240SX-S13/S14/S15 (11mm) 1300.60.11.14.4 $945.00
240SX-S13/S14/S15 (14mm) 1300.60.14.14.4 $945.00
SR20DET FWD (11mm) 1300.60.11.14.4 $945.00
SR20DET FWD (14mm) 1300.60.14.14.4 $945.00
Patrol 1300.48.14.14.6 $1,417.50
Sentra SE-R Spec V 00-06 1300.48.14.14.4 $945.00
Titan 04+ 1300.48.14.14.8 $1,890.00
Polaris XP 1000 1300.34.14.14.2 $468.30
XP 4 1000 1300.34.14.14.2 $468.30
RZR (All Turbo Submodels) 1300.34.14.14.2 $472.50
Pontiac Firebird (93-97) LT1 1300.60.14.14.8 $1,890.00
Firebird (98-02) LS1 1300.60.14.14.8 $1,890.00
Trans-Am (93-97) LT1 1300.60.14.14.8 $1,890.00
Trans-Am (98-02) LS1 1300.60.14.14.8 $1,890.00
Turbo T/A (89 Anniv.) 1300.60.14.14.6 $1,417.50
GTO (2004) LS1 1300.60.14.14.8 $1,890.00
GTO (2005-2006) LS2 1300.48.14.15.8 $1,890.00
G8 GT 1300.34.14.15.8 $1,873.20
G8 GXP 1300.34.14.15.8 $1,873.20
Porsche 996/997.1 1300.60.14.14.6 $1,417.50
996/997.1 TT 1300.48.14.14.6 $1,417.50
993/911 84-98 (non turbo) 1300.60.14.14.6 $1,417.50
Saturn Ion Redline 1300.60.14.14B.4 $966.00
Sky (Non turbo) 1300.60.14.14B.4 $966.00
Sky Redline (turbo) N/A
Scion tC (05-10) 2.4L 1300.17.01.60.11.4 $995.40
xB (01-15) 1300.60.11.D.4 $945.00
FR-S (13-16) 1300.18.04.36.11.4 $945.00
Ski-Doo 1200 E-Tec 09-12 1300.48.14.14.3 $708.75
Subaru STi (04-06) 1300.18.01.48.14.4 $1,144.50
WRX (02-14) / STi (07-20) 1300.48.11.WRX.4 $945.00
Legacy GT / Forester XT (07-11) 1300.48.11.WRX.4 $945.00
BRZ (2013+) 1300.18.04.36.11.4 $945.00
Suzuki Hayabusa 99-07 1300.19.01.48.11.4 $945.00
Hayabusa Gen 2 – 8 inj 1300.HTP.34.11.4 $945.00
Toyota Corolla GTS (83-87) 4AGE 1300.60.11.D.4 $945.00
Corolla CE, S, LE (03-04) 1300.60.11.D.4 $945.00
GR86 (2017+) 1300.18.04.36.11.4 $945.00
Matrix (01-03) 1300.60.11.D.4 $945.00
MR-2 Turbo (90-96) 3S-GTE (11mm) 1300.60.11.14.4 $945.00
MR-2 Turbo (90-96) 3S-GTE (14mm) 1300.60.14.14.4 $945.00
MR-2 N/A (90-96) 5SFE 1300.60.11.D.4 $945.00
MR-2 Spyder (00-05) 1ZZ-FE N/A
Supra Turbo (87.5-92) 7M-GTE 1300.60.11.D.6 $1,417.50
Supra Turbo (93-98) 2JZ-GTE (11mm) 1300.60.11.14.6 $1,417.50
Supra Turbo (93-98) 2JZ-GTE (14mm) 1300.60.14.14.6 $1,417.50
Supra Turbo (93-98) 2JZ-GTE (Radium Rail) 1300.34.14.14.6 $1,404.90
Toyota 1JZ VVT-i 1300.60.11.D.6 $1,417.50
Supra NA (93-98) 2JZ-GE 1300.60.11.D.6 $1,417.50
2JZ-GE Air-Assist 1300.30.02.60.11.6 $1,470.00
Celica All-Trac (89-99) 3S-GTE (11mm) 1300.60.11.14.4 $945.00
Celica All-Trac (89-99) 3S-GTE (14mm) 1300.60.14.14.4 $945.00
Celica GT (00-05) 1ZZ-FE N/A
Celica GTS (00-05) 2ZZ-GE 1300.30.01.60.11.4 $995.40
Landcruiser 1300.60.11.D.6 $1,417.50
FJ Cruiser / 4Runner / Tundra 1300.60.14.D.6 $1,417.50
Volkswagen VW 1.8T 1300.60.14.14B.4 $966.00
VW EA888 Gen 3 1300.34.14.14.4 $936.60
VW VR6 (12v) 1300.60.14.14B.6 $1,449.00
VW VR6 (24V) N/A
Yamaha FX-SHO/FZ Watercraft 1300.27.01.48.11.4 $945.00
Apex Snowmobile 06-12 1300.48.11.14.4 $945.00
Nytro Snowmobile 08-12 1300.48.11.14.3 $708.75
YXZ1000(R) UTV 1300.27.02.34.11.3 $708.75
