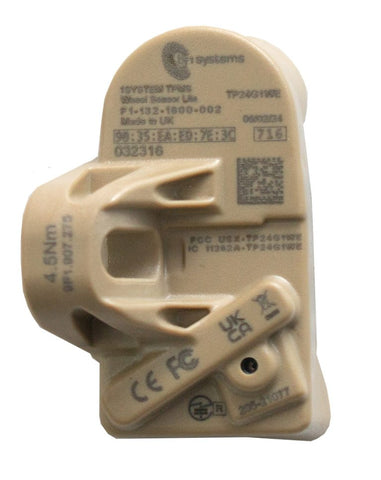

TPMS

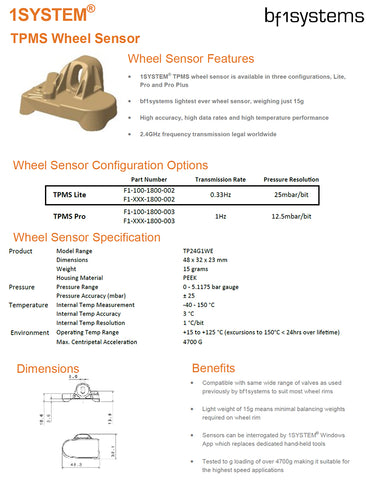

Sensor Type: TPMSTransmission Rate: 0.33HzPressure Resolution: 25mbar/bitPressure Range: 0 – 5.12...
$ 327.00
1 product
-
Featured
-
Blog
-
Latest from the blog
11/03The new Link G4X ...
Read more
Exhilaration starts here!
Link's latest platform, G4X, is headlined by a faster microprocessor, high speed communications chip and 512 Megabytes of data logging across the entire product range.
This range includes the AtomX, MonsoonX, StormX, XtremeX and FuryX WireIn ECUs, plus the entire PlugInX category. Link's PlugIn ECUs remain unique in that they are a true "Plug n Play" solution, using the car's factory (OEM) wiring loom. No messy adapter harnesses required.
There are some performance improvements seen in G4X that Link is Xtremely proud of (pun intended).
Well, we guess you are to find out exactly what these changes are!
Compared to G4+ ECUs, ALL G4X ECUs feature:
- A faster Micro controller - meaning your engine will run smoother, accelerate faster and act more responsively
- An upgraded Communications Chip - sees download speeds 16 x faster than G4+
- 512 Megabytes of data logging - this is over 100x the size of prior Link ECUs**
- A new version of PC Link tuning software - which is easier to use and modify tunes with
Some additional upgrades, of particular interest to Engine Tuners include:
Enhanced Inputs and Outputs
Expanded frequency range of inputs and outs is larger, meaning they can pick up more information and are more responsive to inputs. The maximum digital input frequency is now in excess of 10kHz.
Math Functions
G4X uses Maths Blocks that can create simple algebraic formulas as opposed to using a set table. This will allow the tuner to write their own scripts using simple algebra.
Fuel Table upgrades
Smoother fueling now occurs due to the fuel tables now using single precision floating point format.
Control Loops are more precise
Anything with control loops (i.e. E-throttle, closed loop boost control, idle speed control and VVT) are now more precise.
Other updated features within G4X include:
- Asynchronous injection
- Dual Wideband Closed Loop Lambda available in auto mode
- Individual cylinder ignition trim for distributed modes
- Standard fuel and ignition cuts work for rotary motors
- Faster E-Throttle control
- More responsive inputs (map, TPS etc)
- Faster VVT cam control
- Rotary switch inputs
- Log marker Direct Injection switch
- Auxiliaries (including injection and ignition) can output a wider range of frequencies
- Any auxilary port can now be used for VVT control
- All Digital Inputs can be frequency inputs
- Automatic VVT angle detection
- VVT now features cold temperature compensation
- Starter control has more features like a speed and clutch lockout
- Idle speed features are interconnected between the different types of actuator. Plus, there are more trims available including a GP trim
- Boost control now has a general purpose table, as well as the usual tables
- Improved traction control
+ many more features to come.
All being said, Link maintains that the predecessors to G4X are exceptional quality and performance. The earliest generation, G1, was produced over 25 years ago and is still in action today.
Most importantly however, G4X is now our current platform of engine management. There are many more exciting software upgrades coming for this product range!
A Link ECU Dealer should be your first port of call to help you select the best ECU for your needs. Find a Dealer here.
Notes:
**G4X has 512 megabytes of logging with 32bit resolution, up to 1,000 samples per second logging rate, up to 250 channels.
-maximum combined logging rate is 100000 samples per second across all enabled channels.-Examples of channels possible at maximum logging rate:- 100 channels @ 1,000Hz (100 channels total)
- 80 channels @ 1,000Hz + 40 channels @ 500Hz (120 channels total)
- 50 channels@ 1,000Hz + 100 channels @ 500Hz (150 channels total)
- 200 channels @ 500Hz (200 channels total)
- 50 channels@ 1,000Hz + 50 channels @ 500Hz + 125 channels @ 200Hz (225 channels total)
11/12New Prices on all...
Read more
We are happy to offer new MUCH lower pricing on all M1 seires ECU's from Motec!
Also check out our Promos section for PRI Show bundle specials...
17/11Link ECU Opens in...
Read more
We are excited to share the news, Link ECU has now opened a location in CA! Now, even if we do not have your link product on the shelf, we can still ensure same day shipping of all Link products from the CA warehouse!
We are excited to continue to work with Link as they expand as a company and continue to offer a fantastic line of ECU's and accessories!
-
