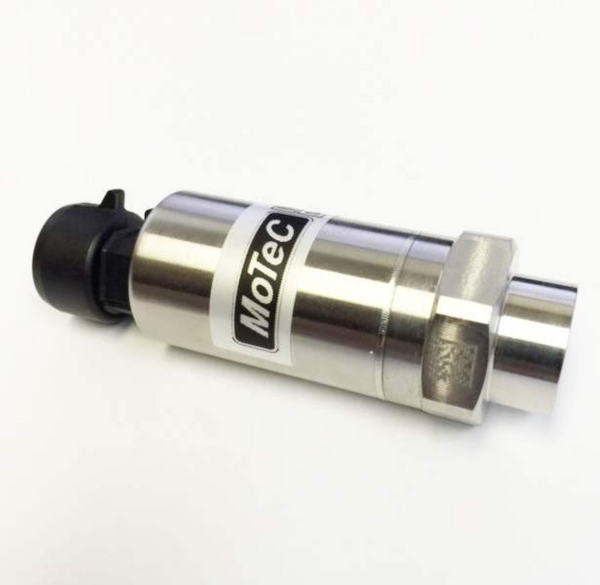

Motec Pro Pressure Sensor
Motec Pro Pressure Sensor

Type: Sensors
Vendor: MoTeC

Description:

This professional line of pressure sensors have the repeatability and accuracy needed for the most demanding environments. These featuring an all stainless steel design compatible with all fluids. A dash-3 female thread for easy adoption to any fitting size through the use of an aluminium adapter available separately. All sensors feature a metri-pack electrical connection. Pressure ranges are available in either Gage or Absolute.
Part # Range
M KP45 75A          75 PSI Absolute
M KP41 100G        100 PSI Gauge
M KP41 150G        150 PSI Gauge
M KP41 300G        300 PSI Gauge
M KP41 1000G      1000 PSI Gauge
M KP41 2000S      2000 PSI Gauge
M KP41 3000S      3000 PSI Gauge
Calibration:
0.5V = 0 PSI
4.5V = Full Scale Pressure
Specifications:
  •  Fitting: Dash-3 female
  •  Output: 0.5 to 4.5 VDC
  • Supply: 5 +/- 0.5 VDC
  •  Current: < 10mA
  •  Output Impedance: < 100 Ohm
  •  Temperature Range: -40°C to 125°C
  •  Total Error: 0.8% of F.S. Pres
  •  Proof Pressure: 2 x F.S. Pres
  •  Burst Pressure: 5 x F.S. Pres
  •  Main Seal: welded stainless
  •  Weight: 70 grams
Note: Sensor should be mounted remotely to avoid engine vibration damage.
